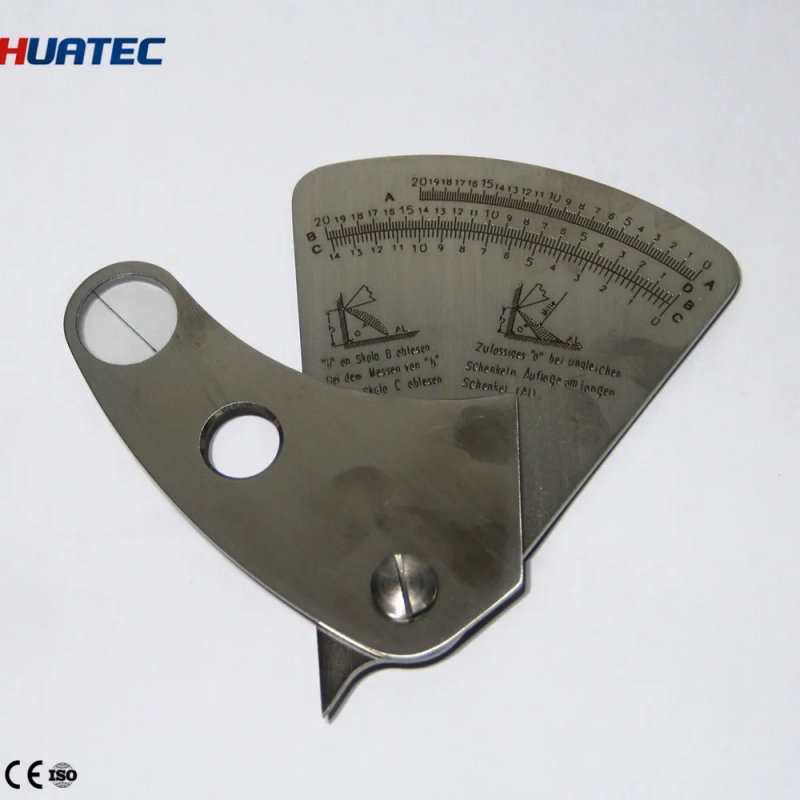

Portable Multi-Function Fan Shape Welding Gauge for Fillet, Undercut and Gap Measurement

  • 1
  • 2

Brand Name : HUATEC

Certification : CE

Place of Origin : China

MOQ : 1 pc

Payment Terms : T/T,Paypal

Supply Ability : 10sets/Month

Delivery Time : 7-10 working days after receipt of your payment

Packaging Details : Carton packing box

material : Stainless steel

Scale : Metric & Inch Dual Scale

Accuracy : ±0.05 mm

Contact Now

Portable Multi-Function Fan Shape Welding Gauge for Fillet, Undercut and Gap Measurement


Fan-shaped welding gauge is a professional multi-function inspection tool made of high-quality stainless steel with laser-etched clear scales. It integrates multiple measuring functions including fillet weld size, undercut depth, weld reinforcement, root gap and misalignment. Designed with metric and inch dual scales for global use, it features high accuracy, easy operation and portability. Widely applied in welding quality inspection for steel structure, pipeline, pressure vessel, shipbuilding and engineering machinery industries.


Material Stainless Steel
Scale Metric & Inch Dual Scale
Accuracy ±0.05 mm

Application:
  • Measure fillet weld leg length and throat thickness
  • Detect undercut depth and pitting depth
  • Check weld reinforcement height
  • Measure root gap and misalignment
  • Application: Welding inspection, steel structure, shipbuilding, pipeline, pressure vessel

    Portable Multi-Function Fan Shape Welding Gauge for Fillet, Undercut and Gap Measurement

    Portable Multi-Function Fan Shape Welding Gauge for Fillet, Undercut and Gap Measurement
