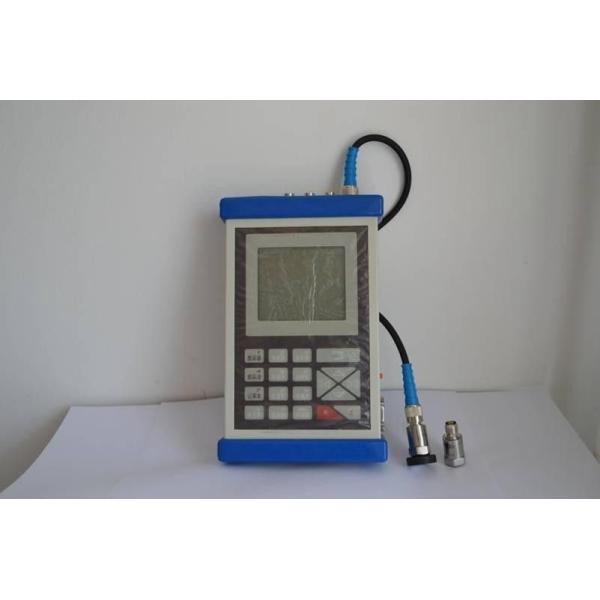

2 Channel RS232C Portable Vibration Meter HG-601A / HG-603A

2-Channel Vibration Analyzer/Balancer HG-601/HG-603

Features:

• Easy to use data collector

• 2 channels simultaneous sampling & display

• On-site 400-lines FFT spectrum and waveform display; Transfer function analysis;

• Data storage: 240 1024-point time waveforms and 62 data sets

• Acceleration envelope demodulation for rolling bearing and gear-box diagnosis

• On-site spectrum comparison function

• Inner or external trigger selectable

• Full featured 1 and 2-planes field balancing (10 sets balancing data storage; balancing process clarified by vector graph; trial weight estimation; can remain or remove trial after balancing; balancing weight decomposition)

• Balancing report automatic generation.

• HG-603 is the same instrument but without communication port for computer nor the software capability.

HG-601 Packing List

HG-601 Vibration Data Collector 1

Accelerometer 2

Magnetic Mount 2

Steel Extension Probe 1

Battery Charger 1

Accelerometer Cable 3

RS232c Communication Cable 1

Balancing Module 1

Tacho/Trigger Sensor and cable 1

Reflector Paper set 1

Quick Start Guide 1

HG software CD 1

Certificates of HG-601 and sensors 3

Carrying Case 1

Stand for tacho sensor 1

Specifications:

·Input signal: accelerometer and voltage, 2 channels

·Amplitude ranges & Frequency Response of overall measurement:

Displacement 0.001 – 5 mm peak-peak 10 - 500 Hz

Velocity 0.1 - 200mm/s true RMS 10 - 1000 Hz

Acceleration 0.1 - 250m/s2 peak 10 - 10000 Hz

Acceleration Envelope 0.1 - 20m/s2 true RMS 5-2000Hz from 15-40 KHz

Voltage 0.1 - 10V peak-peak 0.5 - 10000 Hz

·Amplitude spectrum analysis: 100 and 400 Lines, hanning windowed

·Frequency span of spectrum analysis: 100, 200, 500, 1k, 2k, 5k, 10kHz(1 channel only)

·Data storage: 62 1024-points time waveforms and 240 data sets

·Notepad: 10 condition codes for visual inspection

·Output: RS232C for communication with PC ·Power: Ni-MH rechargeable battery for 5.5 hours continuous operation, low battery voltage warning ·Operating Environment: 0~50 Celsius degree, 90% humidity non-condensing

·Rotating speed measurement range(with laser-aimed tacho sensor):180-24000 r/min

·Dynamic Range: 60dB with 48dB gain range

·Gain adjustment: both automatic-adjustment or manual- adjustment selectable

·Anti-aliasing filter: 8th order elliptic low-pass

·Dimensions: 21×13×4 cm;

·weight: 1.25 Kg

HG-601A/HG603A Dual collector/ Balancer/Analyzer

Features:

• 1 or 2 plane On-site Balancing

• 50 sets storage of balancing data

• Process clarified by vector graph

• Trial weight estimation

• Trial can be removed or remain

• Balancing weight can be decomposed to 2 required positions

• Rechargeable battery for more than 6.5 hours continuous operation

• Dual-channel vibration Analyzer

• 1600 lines FFT spectrum

• Spectrum and time waveform display

• Acceleration envelope demodulation

Auto-range or manual-range for impulse vibration measurement Storage: 400 vibration value sets & 400 waveforms of 1600 samples HG3.0 software analysis spectrum(only HG-601A can connection) Chinese or English language operation, 4.3 inch Color display

Specification:

Rotation Speed: 120-30,000 r/min

Input: Accelerometer & Voltage for velocity or displacement sensors

Measure Acceleration, Velocity, Displacement, Voltage and Acceleration Envelope

Balancing by the method of influence coefficient

Vibration value accuracy 5% Operating Environment: -30°——95°

Normal temperature sensor Environment: -35°——80°

High temperature sensor Environment: -35°——130°

Frequency response for vibration overall value & Spectrum: 0.5Hz-10kHz

Hanning windowed Spectrum

Measurement Range & Resolution

Acceleration 250m/s2 0.1m/s2

Velocity 200mm/s 0.1mm/s

Displace 5000 μm 1 μm

Envelope 25m/s2 0.1m/s2

Laser tachometer

Size: 210*130*40mm

Weight: 950g(including battery)

HG-601A/ HG603A Packing List

Vibration Data Collector 1

Accelerometer 2

Magnetic Mount 1

Steel Extension Probe 1

Battery Charger 1

Accelerometer Cable 3

USB Communication Cable(HG601A) 1

Balancing Module 1

Tacho/Trigger Sensor and cable 1

Reflector Paper set 1

Quick Start Guide 1

HG software CD (HG601A) 1

Certificates of HG-601A/HG-603A and sensors 3

Carrying Case 1

Mount base stand for tacho sensor 1
